New Bullards Bar Dam

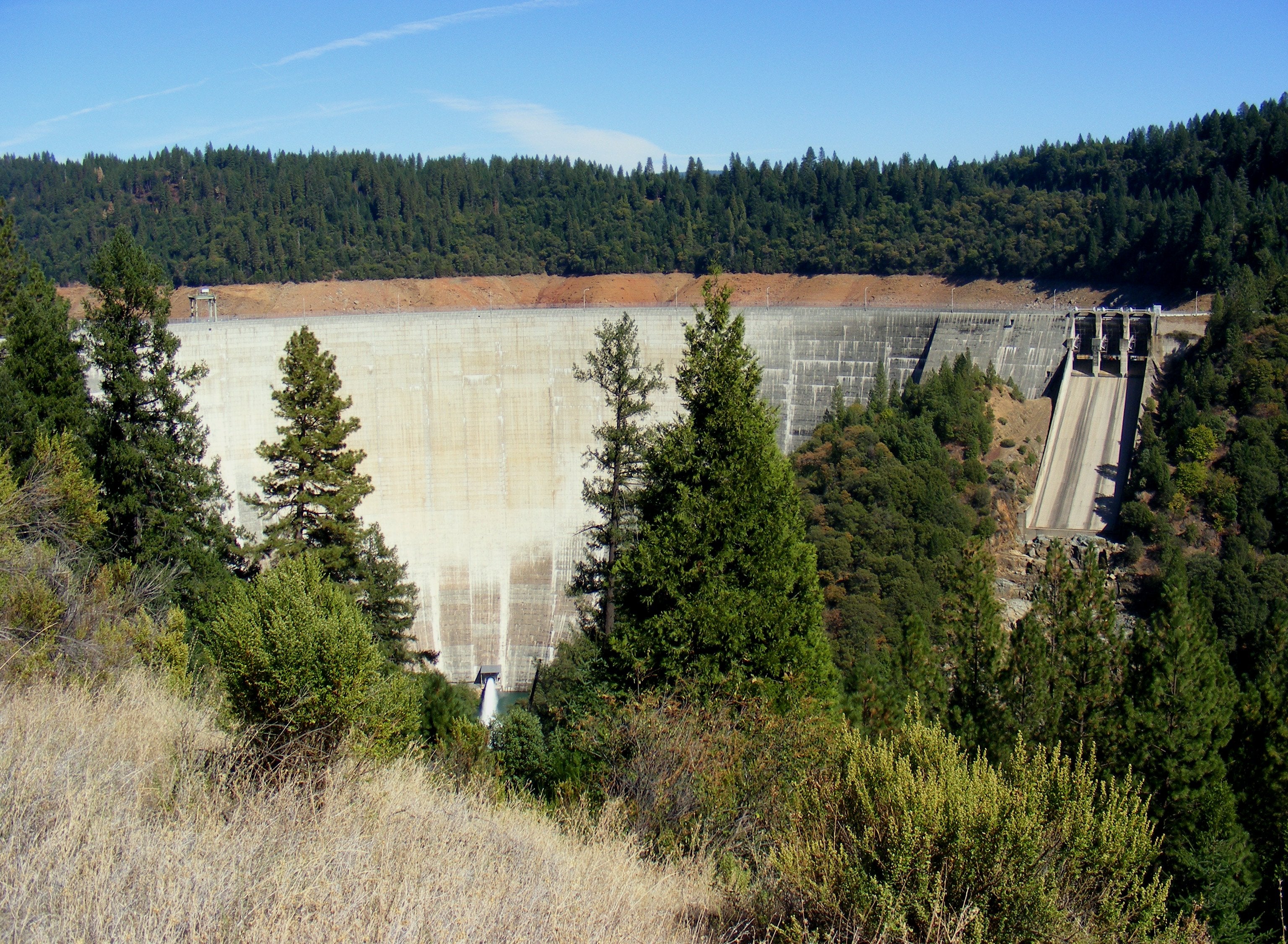

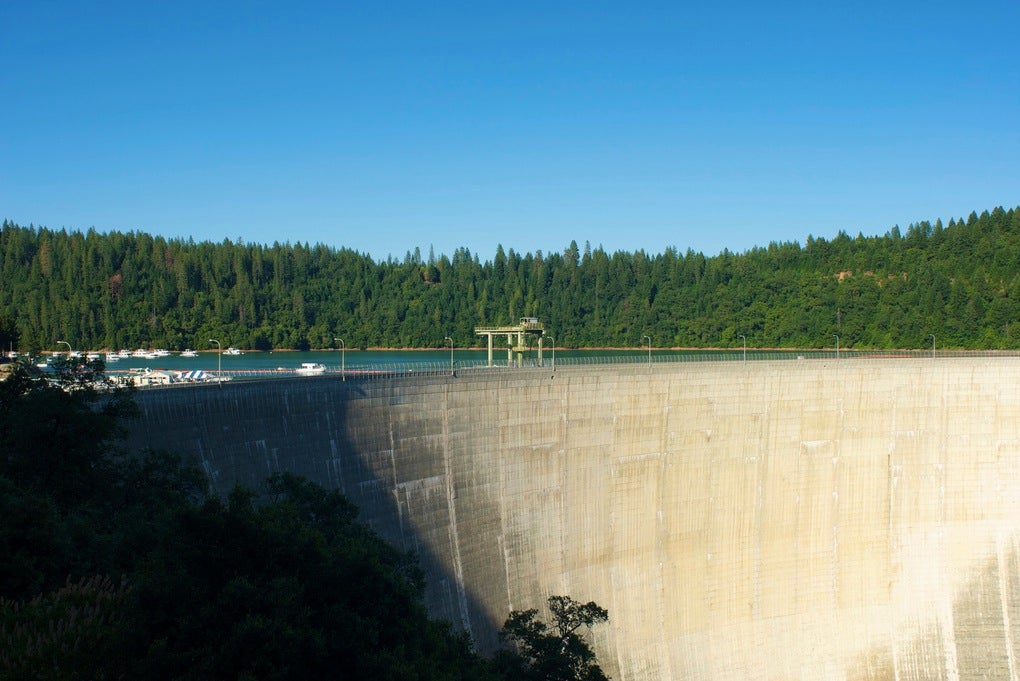

Almost a million acre feet of water from the North and Middle Yuba River and Oregon Creek are stored behind the 64-story high, 2,323 foot long New Bullards Bar Dam, which is located at the south end of a 16 mile long reservoir. In addition to providing flood control, the reservoir stores water for irrigation and power generation, is a recreation area, and influences downstream river temperatures for fishery enhancement. New Bullards Bar Reservoir provides flood control space between September 15 and May 31 of each year. The dam furnishes water to the New Colgate Powerhouse, which is located 5 miles (8.0 km) downstream. The added distance increases the head (i.e. elevation change). Its two Pelton wheels have a combined capacity of 315 megawatts and are some of the largest ever made. The small Fish Release powerhouse was constructed in 1986 at the base of the dam. It has a capacity of 150 kilowatts and generates power from water releases for fish on the Yuba River.A 14-foot (4.3 m)-diameter penstock drains water from the New Bullards Bar Reservoir several miles through a mountain and down a large hill to deliver water to the Colgate Powerhouse. In 2006 a 168 inch (4.3 m) butterfly valve was designed and manufactured in Europe for installation in the penstock at the top of the hill to protect the powerhouse from flooding in the event that an earthquake or other event caused the penstock to rupture. This valve uses a design similar to that of the dam's base release works.New Bullards Bar dam is one of five dams on the Yuba River. The other dams are: Englebright, Our House, Log Cabin and Daguerre Point Dam (a sediment barrier dam).
